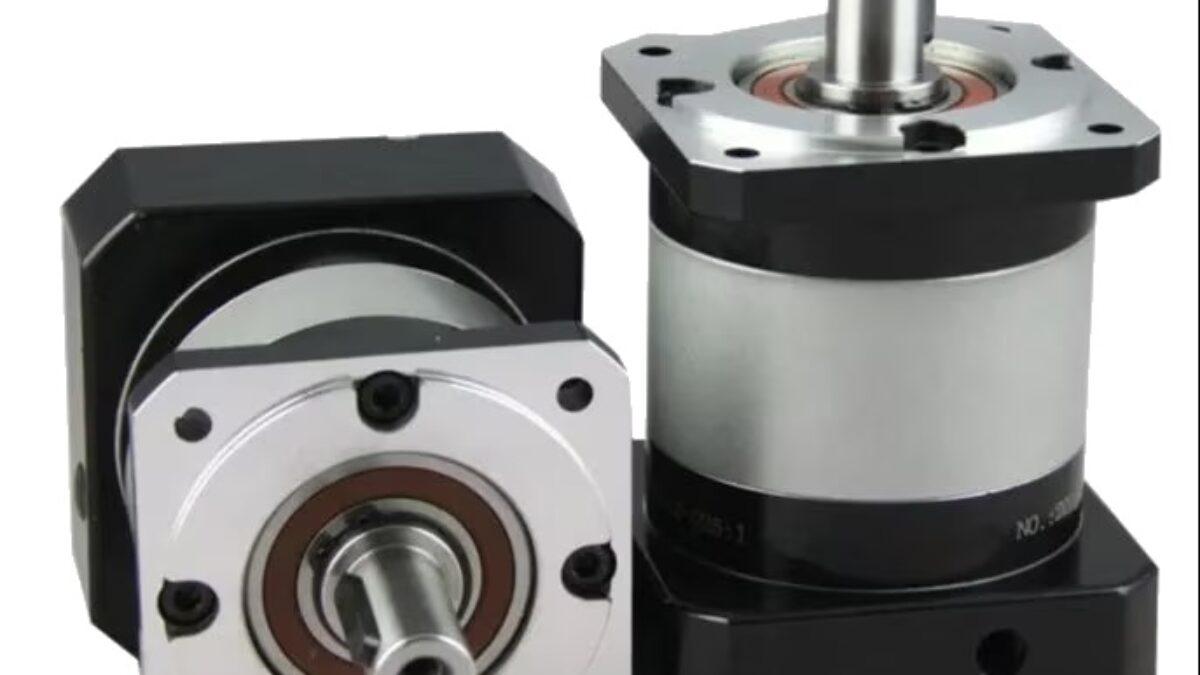

A Servo Motor Planetary Reducer is a precision mechanical transmission designed to reduce motor speed while increasing output torque for demanding motion-control applications. By combining a servo motor with a planetary gearbox, automation systems can achieve controlled speed, accurate positioning, higher torque density, and reliable power transmission. These reducers are widely used in CNC machines, robotics, packaging equipment, automated assembly systems, material handling machines, printing equipment, textile machinery, and other industrial automation applications where precision and consistent performance are essential.

What Is a Servo Motor Planetary Reducer?

A Servo Motor Planetary Reducer is a gearbox specifically designed to operate with servo motors. Servo motors can deliver high speed, rapid acceleration, and precise control, but many mechanical loads require a different combination of speed and torque at the output.

The planetary reducer solves this problem by reducing the motor's rotational speed and increasing the available output torque.

The basic planetary gear arrangement consists of:

  • Sun gear
  • Planet gears
  • Planet carrier
  • Ring gear
  • Input shaft
  • Output shaft
  • Precision bearings
  • Gearbox housing

The sun gear normally receives the input from the servo motor. Multiple planet gears engage with the sun and ring gears while rotating around the central sun gear. This arrangement distributes the transmitted load across multiple gear meshes and provides high torque capacity within a compact package.

The result is a mechanical drive system that can better match a servo motor's characteristics to the requirements of the machine.

Design of a Servo Motor Planetary Reducer

The design of a planetary reducer directly influences its torque capacity, precision, efficiency, durability, and operating speed.

1. Planetary Gear Arrangement

The defining feature of the gearbox is its planetary gear system. Unlike a simple gear pair, several planet gears share the transmitted load.

This provides several engineering advantages:

  • High torque density
  • Compact construction
  • Balanced load distribution
  • Improved mechanical rigidity
  • Efficient power transmission

Because multiple gears participate in power transmission, planetary gearboxes can provide significant torque output without requiring an excessively large gearbox.

2. Precision Gear Manufacturing

Gear accuracy is especially important in servo applications because mechanical errors can influence positioning performance.

Precision-manufactured gears help reduce unwanted clearance, vibration, and transmission errors. For applications involving frequent acceleration, deceleration, reversing, and positioning, gearbox accuracy becomes particularly important.

3. Rigid Housing

The gearbox housing provides structural support for the internal gears and bearings. A rigid housing helps maintain the alignment of the gear train under load.

This is important because shaft misalignment or housing deformation can negatively affect gearbox performance.

4. Precision Bearings

Bearings support the rotating components and help manage radial and axial loads. Proper bearing selection contributes to smooth rotation, mechanical stability, and service life.

The Genesis PRF series, for example, specifies different allowable radial and axial loads according to gearbox frame size. Its published figures range from 185 N radial load for PRF40 to 2250 N for PRF160, while allowable axial load ranges from 150 N to 1500 N.

5. Compact Form Factor

One important design characteristic of planetary gearboxes is their high torque capacity relative to their physical size.

This makes them useful for machines where installation space is limited but the mechanical system still requires substantial torque.

How Does a Servo Motor Planetary Reducer Work?

The gearbox works by applying a mechanical reduction ratio between the servo motor and the driven load.

For example, if a servo motor operates at 3,000 RPM and a reducer has a 10:1 ratio, the theoretical output speed is approximately:

Output Speed = 3,000 ÷ 10 = 300 RPM

The reduction also increases available output torque, although the actual output depends on gearbox efficiency and operating conditions.

A higher reduction ratio generally provides lower output speed and greater torque multiplication, while a lower ratio allows greater output speed.

Therefore, selecting the appropriate ratio is one of the most important steps in designing a servo-driven mechanical system.

Performance Characteristics of Servo Motor Planetary Reducers

The performance of a planetary reducer is determined by several parameters rather than a single specification.

Torque Capacity

Torque capacity indicates how much rotational force the gearbox can transmit continuously under its specified operating conditions.

Servo applications can also experience short-duration peak torque during acceleration, deceleration, indexing, and emergency stopping.

The Genesis PRF specifications state a maximum torque of 1.5 times rated torque and an emergency-stop torque of 2.5 times rated torque. These figures are product specifications and should be evaluated against the exact application and model selected.

Input Speed

Servo motors often operate at relatively high speeds. Therefore, the reducer must be capable of handling the motor's input speed.

According to Genesis's published PRF specifications, maximum input speeds range from 4,000 RPM for PRF160 to 8,000 RPM for PRF40 and PRF60, depending on the model. Rated input speeds are lower and also vary by frame size.

Efficiency

Gearbox efficiency determines how effectively input mechanical power reaches the output.

Genesis publishes full-load efficiency specifications of at least 96% for L1 configurations and at least 94% for L2 configurations in its PRF range.

Higher efficiency can help reduce mechanical power losses and heat generation, although actual efficiency depends on the selected configuration and operating conditions.

Torsional Rigidity

Torsional rigidity describes how resistant the gearbox is to twisting under applied torque.

Higher torsional rigidity can be valuable in applications requiring precise motion transmission because excessive mechanical deflection can affect positioning behavior.

The published PRF specifications list torsional rigidity from 0.7 Nm/arcmin for PRF40 to 35 Nm/arcmin for PRF160.

Noise

Noise is another consideration, particularly for equipment operating close to workers or in environments where acoustic performance matters.

Genesis specifies noise levels of ≤55 dB for PRF40, increasing according to frame size to ≤70 dB for PRF160 under its stated test conditions.

Role of Backlash in Servo Applications

Backlash is the amount of mechanical play between mating gear teeth.

In precision automation, excessive backlash can become noticeable when the direction of movement changes. For example, a positioning system that repeatedly moves forward and backward may experience positioning errors if mechanical clearance is significant.

Low-backlash planetary reducers are therefore commonly considered for:

  • CNC machines
  • Robotic axes
  • Pick-and-place systems
  • Rotary tables
  • Automated assembly
  • Precision indexing equipment

However, gearbox backlash is only one part of overall machine accuracy. Motor feedback, coupling stiffness, bearing clearance, machine structure, control tuning, and load characteristics also influence final positioning performance.

Servo Motor Planetary Reducer Applications

The combination of servo motors and planetary reducers is suitable for numerous industrial applications.

1. CNC Machines

CNC machines require controlled movement and accurate positioning across multiple axes.

A planetary reducer can help match the servo motor's speed and torque characteristics to the mechanical requirements of the axis.

2. Industrial Robotics

Robotic systems require controlled acceleration, positioning, and repeated movement.

Planetary reducers can provide torque multiplication while maintaining a compact drive arrangement, making them useful for robotic joints and other motion axes.

3. Packaging Machinery

Packaging machines frequently perform rapid indexing, feeding, cutting, sealing, and positioning.

A servo motor planetary reducer can help provide the controlled output speed and torque needed for these repetitive operations.

4. Automated Assembly

Automated assembly equipment requires accurate positioning of components and tools.

Planetary reducers can support servo-driven mechanisms used for indexing, positioning, and controlled mechanical movement.

5. Printing and Converting Equipment

Printing and converting machines often require synchronized movement and accurate speed control.

A properly selected gearbox can help the servo system deliver appropriate torque and speed to rollers, feeders, and other mechanisms.

6. Textile Machinery

Textile equipment can involve continuous operation, rapid movement, and synchronized mechanical systems.

Servo planetary gearboxes can be used where controlled motion and torque transmission are required.

7. Material Handling

Automated conveyors, rotary systems, positioning mechanisms, and handling equipment can require increased output torque at controlled speeds.

A planetary reducer can help adapt servo motor output to these mechanical requirements.

8. Laser Cutting and Engraving

Laser machines often require accurate movement along multiple axes.

The combination of servo motors and precision planetary reducers can support controlled movement in applications where positioning accuracy is important.

Advantages of a Servo Motor Planetary Reducer

A properly selected planetary reducer can provide several advantages to a servo-driven machine:

  • Higher output torque
  • Controlled output speed
  • Compact construction
  • High torque density
  • Low-backlash configurations
  • High torsional rigidity
  • Efficient power transmission
  • Improved load matching
  • High radial and axial load capability
  • Smooth motion transmission
  • Long operating life

These benefits make planetary reducers suitable for both high-speed and precision-oriented automation systems.

How to Select the Right Servo Motor Planetary Reducer

Choosing a gearbox should begin with the mechanical requirements of the application.

Motor Compatibility

Check the servo motor's:

  • Flange dimensions
  • Shaft diameter
  • Shaft length
  • Mounting holes
  • Pilot diameter
  • Motor power
  • Maximum speed

The gearbox must be mechanically compatible with the motor.

Required Output Torque

Calculate the continuous and peak torque requirements of the driven mechanism.

Do not select a gearbox only according to the motor's rated power. The actual load profile is more important.

Required Output Speed

Determine the desired output RPM and select a reduction ratio accordingly.

Load Characteristics

Consider:

  • Static load
  • Dynamic load
  • Acceleration
  • Deceleration
  • Inertia
  • Radial forces
  • Axial forces
  • Duty cycle

Backlash Requirement

Precision applications may require lower backlash. The appropriate specification depends on the accuracy requirements of the machine.

Operating Environment

Temperature, dust, moisture, vibration, installation orientation, and operating hours should also be considered.

Genesis Technomation India Pvt Ltd for Servo Motor Planetary Reducers

For businesses looking for a supplier of servo planetary gearboxes, Genesis Technomation India Pvt Ltd offers Servo Motor Planetary Reducer solutions for industrial automation and precision motion applications.

Its published PRF series includes models such as PRF40, PRF60, PRF80, PRF90, PRF120, and PRF160, with different torque capacities, reduction ratios, input-speed capabilities, and dimensional configurations.

Genesis also publishes specifications covering maximum torque, emergency-stop torque, allowable radial and axial loads, torsional rigidity, input speed, noise, service life, and efficiency. This information can help engineers evaluate the gearbox against their machine requirements.

The company positions its servo planetary gearbox solutions for applications including CNC machines, robotics, packaging and labeling machinery, printing, textile machinery, pharmaceutical equipment, food processing, semiconductor and electronics manufacturing, laser cutting, and material handling.

If you are comparing suppliers based on product range, specifications, motor compatibility, torque requirements, and industrial application needs, Genesis Technomation India Pvt Ltd can be considered a Best place to Buy Servo Motor Planetary Reducer.

You can explore the product range here: Servo Motor Planetary Reducer – Genesis Technomation India Pvt Ltd

Conclusion

A Servo Motor Planetary Reducer is an important component for converting the high-speed output of a servo motor into controlled, higher-torque mechanical movement. Its planetary gear architecture provides a combination of compact construction, torque density, speed reduction, efficiency, rigidity, and precision that makes it suitable for modern automation equipment.

The performance of the complete system depends on choosing the correct gearbox ratio, torque capacity, input speed, backlash, radial and axial load capability, and mounting configuration. Proper sizing also helps prevent overload, excessive mechanical stress, and premature wear.

From CNC machines and robotics to packaging, assembly, textile, printing, laser, and material-handling equipment, servo planetary reducers can provide the mechanical transmission characteristics required by precision automation.

For industrial users seeking a suitable solution, Genesis Technomation India Pvt Ltd offers a range of PRF-series servo planetary reducers with multiple frame sizes and configurations. Reviewing the technical specifications against the actual motor and machine requirements is the best way to identify the appropriate configuration for a particular application.
